Pinhole Camera Made of Dreams and Passion...
Zero 2000 is our first camera for the celebration of the new millennium and it is the world first and the smallest commercial wooden pinhole camera in 6x6 format. The camera was originally designed by our camera designer with a high-end CAD system.
We use high quality material like teak wood from Thailand and solid brass. For the production, we insist using traditional hand-made method, no CNC router, no CNC laser cutter with more than 20 layers of coating is hand paint, and hand sanding before each layer. The production time from raw wood to a finish camera always more than one year. The first limited edition of 2000 pieces is already sold out for more than twelve years! This is truly unique addition to your collection of pinhole cameras.
Zero 2000 is a super-wide angle camera with a focal length of 25mm and it accepts 120 roll film.
Compact size makes pinhole photography handier: 5 1/4"(w) x 3 1/4"(H) x 1 3/4"(D) and weighs only 250gm.
For the basic version, we have a
simple shutter with low-pressure spring to prevent it from opening suddenly
when carrying. The operation is smooth enough to avoid any vibration when opening
or closing the shutter.
We use 0.001" brass shim to make the pinhole conform to a more actual film stop number; and to render a sharper image. A Zone Plate version of the Zero 2000 is also available.
All pinhole or zone plate are hold in position by this important and unique designed holder/housing.
This holder can not only help to hold the pinhole preciously in the center of the camera but also solve the big problem of dark circle appear in short focal legnth camera. This unique deisgn was already stolen by those copy cats!
After the pinhole holder is preciously machined, a coating of matt black baked enamel to ensure finest protection and prevent internal reflection.
This
camera works best with a mini tripod. Its 1/4" thread tripod socket allows
you to adapt it to nearly all kinds of tripods available in the market.

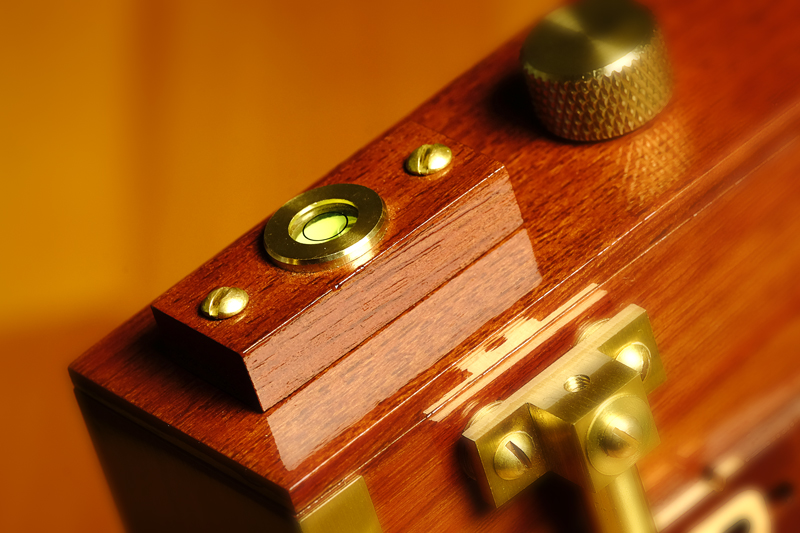

All deluxe version camera comes with the bull's-eye bubble level spirit, you can have more control over angles
and perspective when framing your pictures. It is made of solid brass and wood.
With
our specially-designed cable release adaptor, you can trigger the shutter manually
or with a cable release. This cable release adapter is pre-installed to all our deluxe version cameras. A must for speed pinhole photography!!!
Center
lock to secure the top cover of the camera in place. Practical design allows
you to load and unload your film wherever you want. No dark room or changing
bag is needed.
Film advance knob with beautiful knurled diamond pattern. You will find how useful is this pattern when you have sweaty fingers in the summer or wearing gloves in the winter.
Single direction mechanism
of the film winding button prevents the film from curling back.
Steel spring which hold the film in place and prevent it from loose, it is very important and is a must in any medium format, cheap copies from other manufactuer don't have this important part!
A special material is added to the edge where the film will pass, this is a must to avoid scratches on film.
The solid brass edge protector provide more protection to the camera.
Our
Exposure Scale helps you to calculate the exposure times more quickly with no
need for a separate table. The polished brass displays a finely-etched rendering
of the scale.
A
film counter window which shows you how many frames are remaining.
The structure and joints of the camera are specially designed,
with reinforced bonding which allows the camera to shrink and to swell without
affecting the performance of the camera when the weather changes and also prevent light leak.
The mechanism and the structure of the camera make it
work like an ordinary camera, but it is capable of taking extraordinary pictures!
All camera comes with a
viewfinder so you can frame your image easily. Far better than any markings/lines on the camera and is only available from our company.
For
the materials, we choose only high quality teak wood (for making yacht) which is very stable. The wooden
parts are first kiln-dried and then machine milled into correct size. Matte
black paint is applied to the interior of the camera to prevent light leaks.
More than 15 layers of coating is applied by hand to the camera, to insure maximum
protection of the wood.
Now very few pinhole manufacturer willing/able to adopt this kind of coating because of the far higher requirement in skill and the very long production time.
need a new photos here
We
use hand-turned solid brass for all of the metal parts. A baked color coating
is then applied to prevent them from oxidizing.
The structure and joints of the camera are specially designed,
with reinforced bonding which allows the camera to shrink and to swell without
affecting the performance of the camera when the weather changes. We use specially made clamp and wood glue instead of cheap hot melt glue which is only for fast and cheap production.
All
the pinholes are made in-house and are installed by our designer, Mr. Zernike Au, who also designed
all our cameras and accessories. Every camera is checked and tested by him to
ensure the highest quality.
It's Collectible: A certificate signed by our designer will accompany each camera.
Every camera comes its serial number etched on a beautiful brass plate.
