Collectible Handmade Wooden Pinhole Camera
Pinhole Camera Made of Dreams and Passion...
Zero 4x5 Pinhole Camera System





Our Zero 4 x 5 Multi-Format System is the world’s first commercial wooden pinhole camera that not only combines pinhole and zone plate technology in one unit but also a multi-focal length camera by using a design of extension frame since year 2001.

Your imagination and creativity can go wild! This camera has a simple design, but it can be altered to allow countless combinations with its optional accessories.  A variety of different focal lengths and pinhole sizes are available at your discretion. You can create unique images according to your own creative vision. The Zero 4 x 5 Multi-Format system is a must in your pinhole camera series.

To save more money, we highly recommend that you select one of our packages rather than buying the items separately. There are several packages available designed to meet your needs, they are the Zero 25B, Zero 50B and Zero 75B but since 2022, we can only provide this Zero 45 system in 75mm Deluxe version.

You may purchase more accessories like filter holder or name engraving or extension frames based on the package you have selected.


Zero 75D Deluxe Camera System
  • Price: US$248
  • S&H: US$42
  • Total: US$290
The Zero75D Deluxe Pinhole Camera package comes with our unique cable release adaptor, giving you more control over framing and exposure times, in addition to saving you more than US$151
Buy Now
  • Paypal

  • Zero 25E Extension Frame
    • SOLD OUT
    The extension frame is 25mm focal in length, so adding one extension frame to the basic camera will increase the focal length of your camera by 25mm. It is held in position by two rubber bands. Pleaase contact us if you want camera with more extension frame!

    Design Features
    This brand new and unique magnetic square filter adapter was designed and manufactured during the most difficult years (2019-2022). This filter holder accept square filter with the size of 85mm(width) x 100mm (Length), thickness no more than 2mm. Same size as Cokin "P" series. For more details, please visit here.



    Our 4x5 cameras can accept most film holders available in the market, e.g. 4 x 5 sheet film holder, Polaroid Type 59 , or Polaroid 545.....just to name a few. It will also accept 120 roll film holder for 45 camera, like Horseman or orther brands' 6 x 9 roll film holders.



    Our simple and unique design for the film holder and multi format. The rubber bands are specially ordered from rubber band manufacturers. This clever design already copied by many other pinhole camera makers!



    You can load and unload your film, change from color film to black and white, whenever you want, or you can take a Polaroid proof before the final shot.



    With our specially designed built-in turret, you can easily alternate your camera between a pinhole or a zone plate version. The world's only pinhole camera with such special and original design since 2001!



    Size of the basic camera is just 30mm (D) x 155mm (H) x 135mm (W) (excluding the knob). Carry it in a jacket pocket!



    For basic version, we have a simple shutter with low-pressure spring to prevent it from opening suddenly when carrying. A stop pin that stops the shutter while closing or opening. The operation is smooth enough to avoid any vibration when opening or closing the shutter.

    ***Sorry this version already sold out since 2020!!!***



    We use 0.001" brass shim to make the pinhole conform to a more actual film stop number; and to render a sharper image.



    This camera works best with a tripod. The 1/4" thread tripod sockets allow you to adapt it to nearly any tripod available in the market.



    Both the size and bottom of the camera comes with the tripod socket, this allow you to take pictures in either portrait or landscape orientation. A total of 6 socket in included in the Zero 75 camera system.

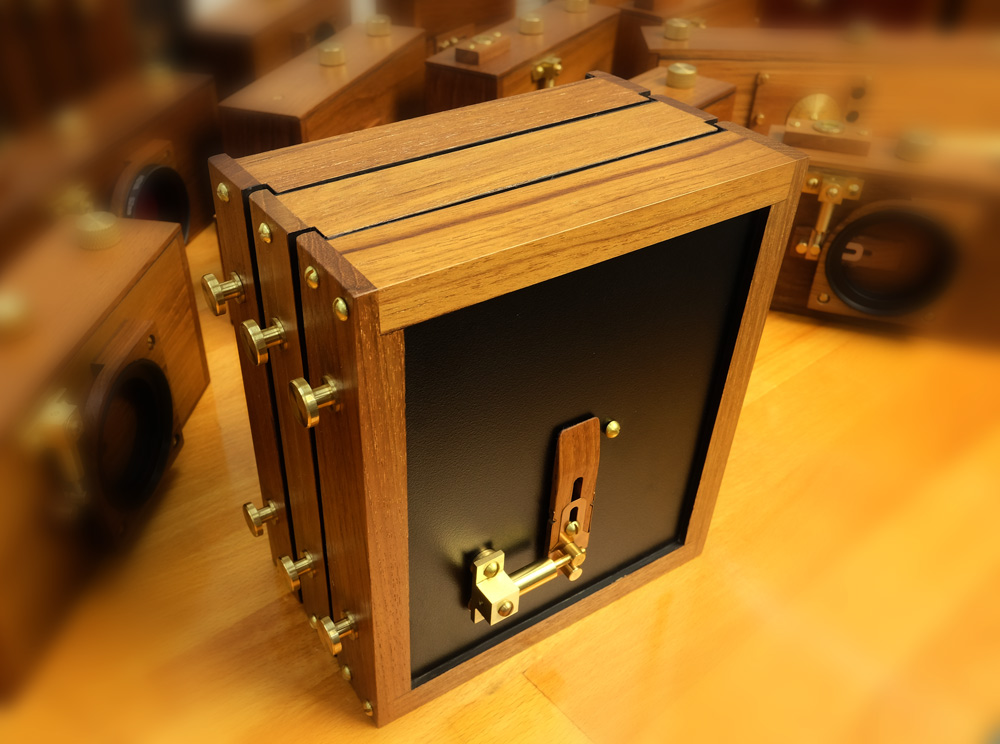

    Our exclusive cable release adaptor lets you choose between manual or remote shutter activation. Price of US$69 if purchased separately.

    This cable release adapter is pre-installed to all our deluxe version cameras. A must for speed pinhole photography!!!



    All Zero 4 x 5 cameras come with our practical exposure scale, which helps you to calculate the actual exposure times (including reciprocity correction) quickly. It's larger size makes it easy to read and can be use with any of our cameras.



    The wooden parts (fashioned from quality Thai teak wood) are first kiln dried and then machine milled into correct size. Matte black paint is applied to the interior of the camera to prevent internal reflections. All inner edges of the camera are covered with a black velvet lining which helps to prevent light leaks even in bright sunlight.

    More than 15 layers of coating is applied by hand to the camera, to insure maximum protection of the wood.

    Now very very few pinhole manufacturer willing/able to product camera with this kind of coating because of the far higher requirement in skill and the very long production time.



    Even a screw inside the camera, we use matt black Baking Paint to coat the bolt and the bottom of the nut in order to reduce internal reflections.



    new photo
    The structure and joints of the camera are specially designed, with reinforced bonding which allows the camera to shrink and to swell without affecting the performance of the camera when the weather changes.



    The mechanism and the structure of the camera make it work like an ordinary camera, but it is capable of taking extraordinary pictures!

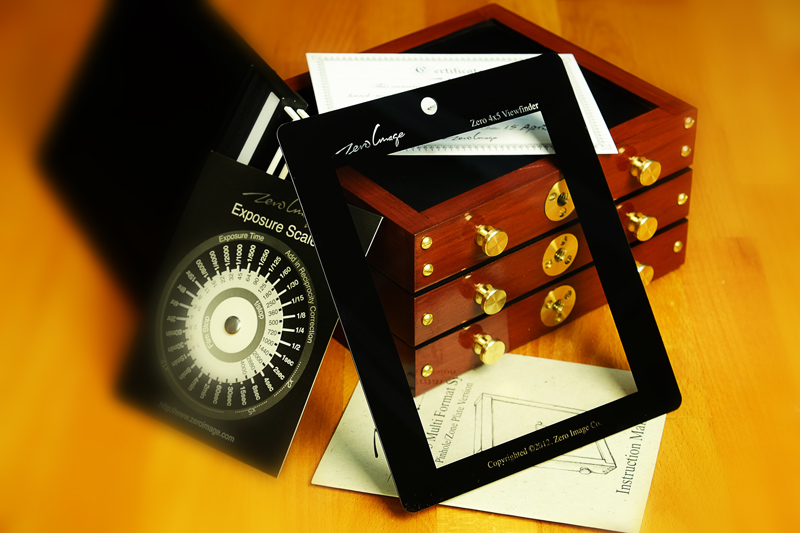

    All camera comes with a viewfinder so you can frame your image easily.



    For the materials, we choose only high quality teak wood . The wooden parts are first kiln-dried and then machine milled into correct size. Matte black paint is applied to the interior of the camera to prevent light leaks. More than 15 layers of coating is applied by hand to the camera, to insure maximum protection of the wood.



    We use hand-turned solid brass for all of the metal parts, with a baked antioxidant coating.



    The structure and joints of the camera are specially designed, with reinforced bonding which allows the camera to shrink and to swell without affecting the performance of the camera when the weather changes. We use specially made clamp and white glue instead of cheap hot melt glue which is only for fast and cheap production.



    All the pinholes, zone plates and turrets are installed by our camera designer, Mr. Zernike Au, in order to insure the highest standards of manufacturing.



    It's Collectible: A certificate signed by our designer will accompany each camera. Every camera comes its serial number etched on a beautiful brass plate.



    Sample Images



    Specification
  • Material: Teak Wood, Solid Brass
    Weight: 168 gm(basic camera) 130 gm (extension frame)
  • Focal Length: 25/50/75mm
    Tripod socket: 1/4" Thread
  • Pinhole Size: 0.18mm (25mm), 0,28mm (50mm), 0.35mm (75mm)
    Zone Plate: 25mm w/11 zones, 50mm w/21 zones, 75mm w/33 zones
  • Angle of View (diagonally): 148.35° (25mm), 120.99° (50mm), 99.35° (75mm)
  • Dimension (25mm camera): 30mm (D) x 155mm (H) x 135 mm (W) (knob is not included)
  • Film Stop: F/138 (25mm), F/176 (50mm), F/216.5 (75mm)
  • F/stop Zone Plate: F/43.25 (25mm), F/45.54 (50mm), F/44.7 (75mm)
  • Film Format: 4x5 sheet film, paper negative, 120 roll film, Polaroid color or black and white film
  • Film Holder Accepted: 4x5 sheet/pack film holder, Polaroid 545, Type 55, Calumet 6x9 or 6x12 roll-film back.
  • Specifications and design are subject to change without notice.


  • Order: What you get?

    Zero 75D Deluxe Camera System
    One Basic camera
    Two Extension Frames
    Paper Version Exposure Scale
    Viewfinder
    Turret with 3pinhole & 3 zone plate
    Rubber Bands - 12 pcs.
    Cable Release Adapter
    Brass plate w/serial no.
    Signed Certificate
    Instruction Manual
    • Price: US$248
    • S&H: US$42
    • Total: US$290
